KILTER BOARD AND SPRAY WALL

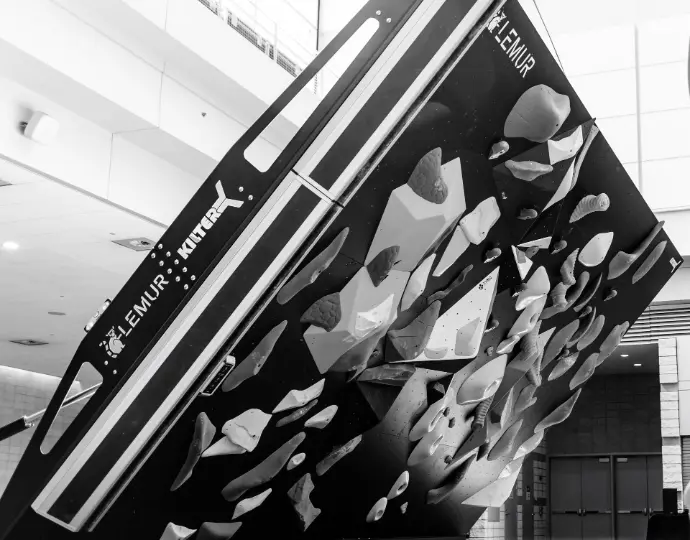

ADJUSTABLE CLIMBING WALL

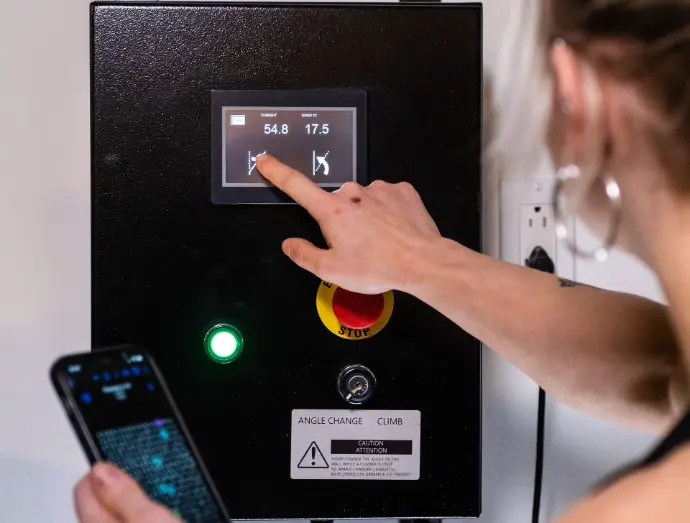

Lemur Design's commercial adjustable climbing walls are designed for the climber. Changing the angle of the wall is as easy as operating an elevator. At the tip of a finger the climber can adjust the wall in seconds.

All Lemur Design adjustable climbing walls have been designed in partnership with Kilter Grips for seamless integration
with the Kilterboard system. The grip numbers and orientation are discreetly engraved on the wall
for easy installation and maintenance of the Kilterboard system.

Lemur Design's adjustable climbing walls can be used as both conventional and spray walls.

They comply with the various electrical standards in effect in North America and elsewhere in the world.
The wall operates on 110V to 250V and consumes only 350W.

New compact design with only 17 or 32 inches of depth for the adjustable 16x12, 12x12, 10x12, 8x12 models.




ADJUSTABLE WALL 16X12

Official Kilter Board wall.

32" deep.

Adjustable from 0˚ to 70˚ overhang.

Available with regular (39") and low (27") kickboards.

Available for other socket configurations.

DRAWING 16 X 12.

ADJUSTABLE WALL 12X12

Official Kilter Board wall.

17" or 32" deep.

Adjustable from 0˚ to 70˚ overhang.

Available with regular (39") and low (27") kickboards.

Available for other socket configurations.


DRAWING 12 X 12.

ADJUSTABLE WALL 10X12

Official Kilter Board wall.

17" or 32" deep.

Adjustable from 0˚ to 70˚ overhang.

Available with regular (39") and low (27") kickboards.

Available for other socket configurations.

 DRAWING 10 x 12









ADJUSTABLE WALL 8X12

Official Kilter Board wall.

17" or 32" deep.

Adjustable from 0˚ to 70˚ overhang.

Available with regular (39") and low (27") kickboards.

Available for other socket configurations.

DRAWING 8 X 12.

ADJUSTABLE WALL 16X14

Official Kilter Board wall.

Adjustable from 30˚ to 70˚ overhang.

39" Kickboard with adjustment for 0˚ or 45˚

DRAWING 16 X 14.

ADJUSTABLE SLAB WALL

Official Kilter Board wall.

Our adjustable Slab Wall is available in several sizes such as 8'-12'-16'-20' and 24' wide with an adjustment of 10˚slab to 40˚ overhang.

Available in 14' and 12' heights with a 16" mattress base.

DRAWING 24 x 14




KICKBOARD OPTIONS

Regular (39") and low (27")

AVAILABLE FOR 16X12, 12X12, 10X12 AND 8X12 FT

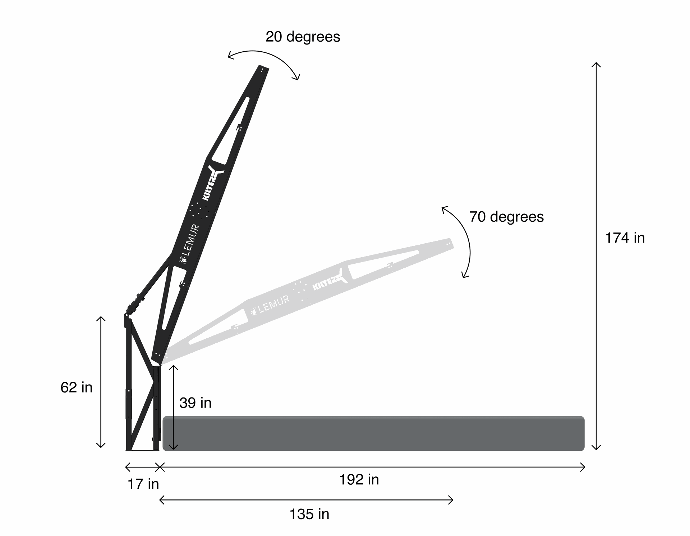

REGULAR KICKBOARDING

- 39" Kickboard
- For ceilings over 15 feet
- Height required at 20 degrees = 174"
- Available for 16x12, 12x12, 10x12 and 8x12 foot walls

AVAILABLE FOR 16X12, 12X12, 10X12 AND 8X12 FT

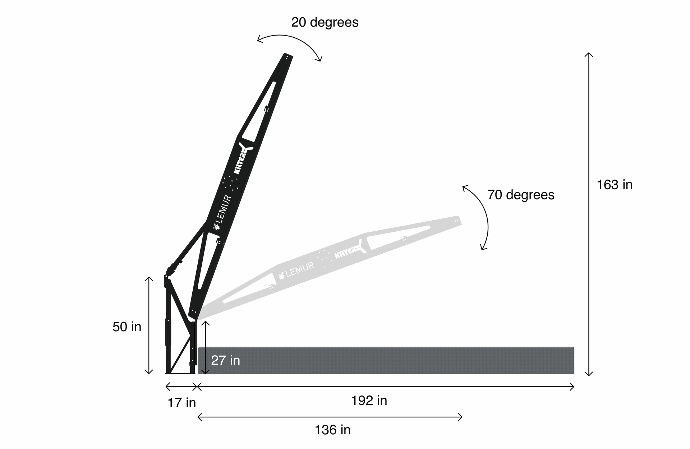

LOW KICKBOARD

- 27" Kickboard
- Ideal for ceilings less than 15 feet
- Height required at 20 degrees = 163"
- Available for 16x12, 12x12, 10x12 and 8x12 foot walls

AVAILABLE UP TO 24X14 FT

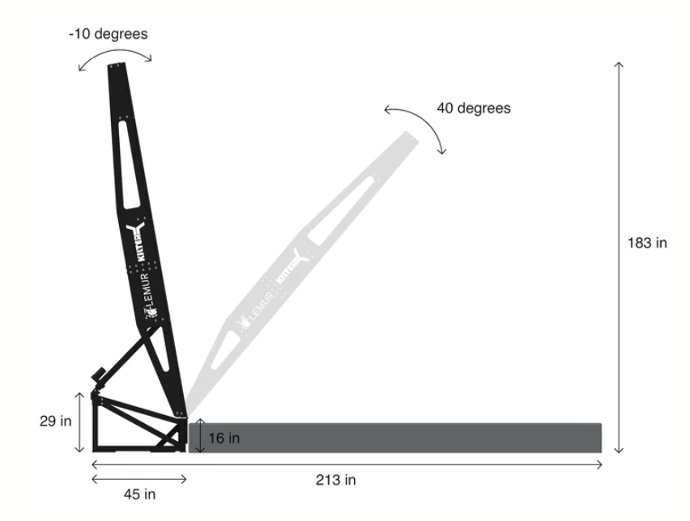

THE SLAB WALL (SPRAY WALL)

- Base for 16 inch mattress
- Width available from 8'-12'-16'-20'and 24 foot
- Height available 14' and 12 foot
- Adjustable from 10˚ slab to 40˚ overhang
